What is the specification for carbon steel pipe?

Specifications for Carbon Steel Pipe

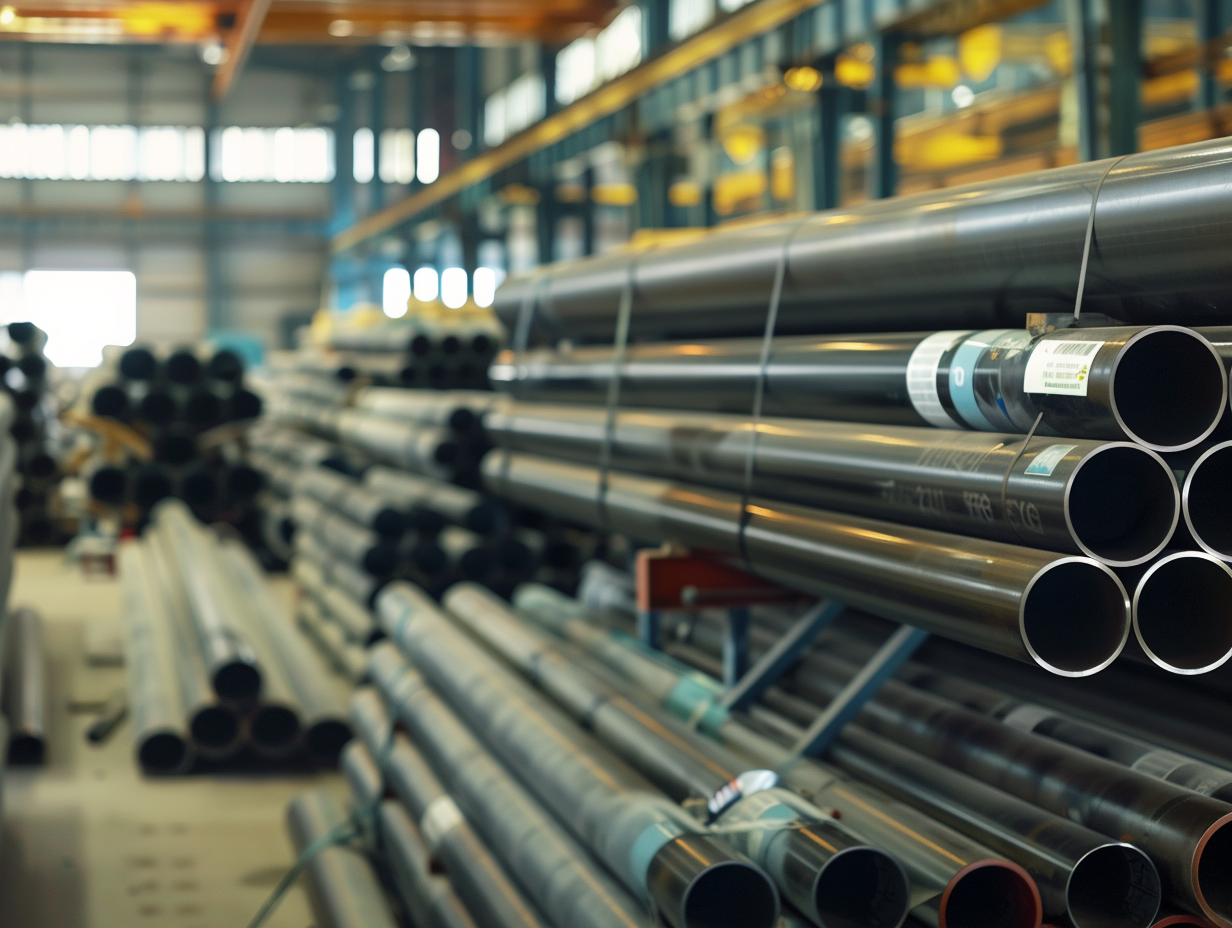

Carbon steel pipes are widely used in various industrial, structural, and mechanical applications due to their strength, durability, and cost-effectiveness. They are manufactured to meet specific standards and specifications to ensure their suitability for a range of uses. Understanding these specifications is essential for selecting the right type of carbon steel pipe for your project.

Carbon steel pipes are specified based on various parameters such as material composition, dimensions, mechanical properties, and applicable standards.

Material Composition

The composition of carbon steel pipes typically includes iron and carbon, with trace amounts of other elements such as manganese, silicon, and copper to enhance specific properties. The percentage of carbon and other elements determines the grade and type of carbon steel.

Dimensions and Sizes

1. Nominal Pipe Size (NPS) and Schedule

Carbon steel pipes are often specified using the Nominal Pipe Size (NPS) and Schedule system:

• NPS: A standard for identifying the diameter of pipes. It does not correspond directly to the actual outer diameter but provides a reference size.

• Schedule: Indicates the wall thickness of the pipe. Common schedules include 5, 10, 40, and 80, with higher schedule numbers representing thicker walls. For example, a Schedule 40 pipe has a thicker wall compared to a Schedule 10 pipe of the same NPS.

2. Outside Diameter (OD) and Wall Thickness

• Outside Diameter (OD): The external measurement of the pipe's diameter.

• Wall Thickness: The thickness of the pipe wall, which influences the pipe's strength and pressure rating.

Pipes are often specified by both their OD and wall thickness to ensure they meet the required mechanical and pressure-handling characteristics.

Mechanical Properties

The mechanical properties of carbon steel pipes include tensile strength, yield strength, elongation, and hardness. These properties determine the pipe's performance under various stress and load conditions.

1. Tensile Strength

• Tensile Strength: The maximum stress the material can withstand while being stretched or pulled.

2. Yield Strength

• Yield Strength: The stress at which the material begins to deform plastically. Beyond this point, the material will not return to its original shape when the stress is removed.

3. Elongation

• Elongation: A measure of ductility, represented as the percentage increase in length before the material fractures.

4. Hardness

• Hardness: The resistance of the material to deformation, typically measured using scales such as Brinell, Rockwell, or Vickers.

Applicable Standards

Carbon steel pipes must conform to specific standards set by organizations such as ASTM, ANSI, API, and ASME. These standards define the material composition, manufacturing processes, mechanical properties, testing requirements, and dimensional tolerances.

1. ASTM Standards

• ASTM A106: Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service.

• ASTM A53: Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless.

• ASTM A333: Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature Service.

2. API Standards

• API 5L: Specification for Line Pipe, covers seamless and welded steel line pipe for conveying gas, water, and oil.

3. ASME Standards

• ASME B36.10M: Welded and Seamless Wrought Steel Pipe, provides the dimensions and weights of steel pipes.

Types of Carbon Steel Pipe

1. Seamless Pipe

• Manufacturing Process: Produced by extruding the metal to the desired length, resulting in a pipe without a seam.

• Advantages: Stronger and more reliable under high pressures and temperatures, since there are no welded joints that could potentially fail.

2. Welded Pipe

• Manufacturing Process: Manufactured by rolling metal and welding the seam together.

• Types of Welded Pipe: Electric Resistance Welded (ERW), Longitudinal Submerged Arc Welded (LSAW), and Spiral Submerged Arc Welded (SSAW).

• Advantages: Generally more cost-effective and available in larger diameters compared to seamless pipes.

Surface Treatment and Coatings

To enhance corrosion resistance and extend the lifespan of carbon steel pipes, various surface treatments and coatings can be applied:

1. Galvanization

• Process: Coating the pipe with a layer of zinc to protect against corrosion.

• Application: Commonly used in environments exposed to moisture and corrosive substances.

2. Paint and Epoxy Coatings

• Process: Applying a protective layer of paint or epoxy to the pipe surface.

• Application: Used in industrial applications to protect the pipe from chemical exposure and physical wear.

3. Hot-Dip Coating

• Process: The pipe is dipped into a bath of molten zinc to form a thick, durable coating.

• Application: Offers superior protection in harsh environments, such as marine or industrial settings.

Conclusion

The specifications for carbon steel pipes are comprehensive, including material composition, dimensions and sizes, mechanical properties, and adherence to industry standards. Understanding these specifications is crucial for selecting the right pipe for your application, whether it involves high-pressure environments, structural support, or fluid transportation.

By considering factors such as NPS and schedule, mechanical properties, applicable standards, and available surface treatments, you can ensure that the chosen carbon steel pipe meets the required criteria for performance and reliability.

FAQ

1. What does NPS stand for in carbon steel pipe specifications?
   NPS stands for Nominal Pipe Size, which is a standard for identifying the diameter of pipes.

2. What is the difference between seamless and welded carbon steel pipes?
   Seamless pipes are extruded to the desired length without a seam, making them stronger for high-pressure applications. Welded pipes are manufactured by rolling metal and welding the seam, and they are generally more cost-effective.

3. Which ASTM standard is commonly used for high-temperature service carbon steel pipes?
   ASTM A106 is the standard specification for seamless carbon steel pipes for high-temperature service.

4. How does galvanization protect carbon steel pipes?
   Galvanization involves coating the pipe with a layer of zinc, which provides protection against corrosion and extends the pipe's lifespan.

5. What are the mechanical properties considered in carbon steel pipe specifications?
   Mechanical properties include tensile strength, yield strength, elongation, and hardness. These properties determine the pipe's performance under various stress and load conditions.
